For Weight Loss, Less Exercise May Be More

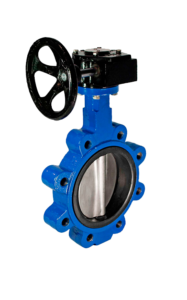

Butterfly Valves are expected to regulate or isolate the flow of a fluid.

Some of the most advanced and durable Pneumatic Rotary Actuator-operated Butterfly Valves have always been designed and manufactured by FlowMaq Euro Automation.

Here are a few of those types:

Rubber-lined Wafer-Type Double Flange Butterfly Valve with Concentric Disc design and a replaceable liner is used in cooling towers, dams, water treatment, gas (main lines and service lines), gas storage tanks, power plants, and so on.
Wafer-type Damper Valves and Double Flange Fabricated Damper Valves from FlowMaq Euro Automation are quickly-actuated, lightweight, with a simple drive. They are used for flue-gas scrubbers, as isolating dampers.
FEP/PFA-lined Valve is another type of butterfly valve that FlowMaq Euro Automation manufactures to cater to applications that involve chlorine, sulphuric acid and nitric acid, benzene, hydrochloric acid and seawater, and so on. FEP & PFA butterfly Valves are highly corrosive environments, under which these valves are able to provide superior corrosion-resistant, as well as resist absorption and swelling.
Double Eccentric Offset Wafer-type Butterfly Valves from FlowMaq Euro Automation are resilient, with long service life, as it doesn’t let the media come in contact with the bearing. These are designed to be anti-corrosive and water-resistant and come with an infiltration-proof seat with weld overlay. They find application in areas that have to do with flow-control operations, such as dams, pre-treated wastewater, and power plant management.
Wafer type Triple Eccentric Butterfly Valves are high-performing complete metal to metal-seated valves from the exhaustive collection of FlowMaq Euro Automation. The most important features of these valves are zero leakage, bi-directional flow control, low fugitive emissions. These are extremely suitable for cryogenic and steam-based applications. The triple-offset sealing system is the reason behind the friction-free movement of the disc.
FlowMaq Euro’s unique Pharmaceutical-grade Butterfly Valves are ultra-sanitary, to the day the least. The purpose of these valves is the control of dry bulk materials. Used in food, fine chemical, cosmetic, biotech, and of course, pharma industries, these easy-maintenance valves come with a mirror finish and a design that is sleek and ensures a maximized flow.
For the difficult production environments, even the downright hostile ones, FlowMaq Euro Automation offers TC END Butterfly Valves. Designed and manufactured to give a reliable and robust performance, every single time, these valves come with a 4-Position handle to give multiple flow options. They have integrated actuator mounting holes, specially designed for these valves, that ensure high-precision aligning of optional actuators.
A lightweight Die-Cast Wafer-type valve made from aluminium finds applications with Nitrile/EPDM (soft-seating) requirements. HVAC plumbing, water treatment plants, fire fighting, and such other operations make use of these valves.
FlowMaq Euro Automation is Butterfly Valve Manufacturer with widespread applications and high acclaim with all its clients, no matter which industry vertical.



Author t1@infigrityit.com Categories THermic Fluid Control Valve, THermic Fluid Control Valve 0 comment

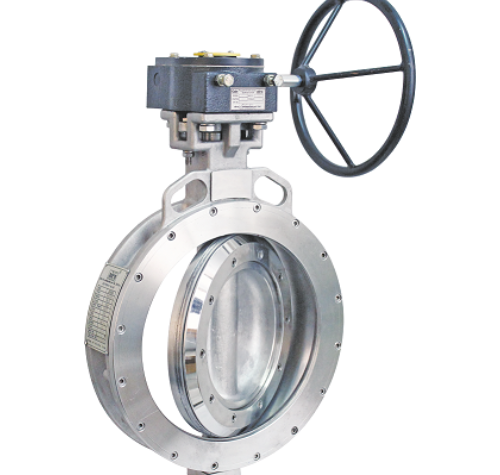

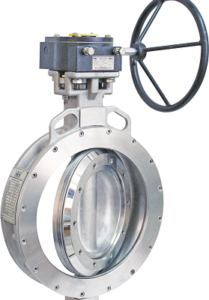

Benefits of Triple Offset Butterfly Valve



Hello readers, this time we talk about the advantages of Triple Offset Butterfly Valve. As we all know, Butterfly Valves are quarter turn valves and require only 90° rotation to come into action. The butterfly valves can be easily operated by pneumatic actuators and a manual hand lever or gear wheel. As per the central disc orientation, the Butterfly Valves are available in three types of offset designs: Zero offset or Concentric Butterfly Valve, Double Offset Butterfly Valve, and Triple Offset Butterfly Valve. A Triple Offset Butterfly Valve has 3 individual offsets. There are two offsets for the shaft in relation to the bore and a third offset for the disc/seat seal surfaces. The third offset is determined by the angle of the seat cone. All three designs and their diagrams were discussed in a previous article. Here we only talk about the advantages.

Advantages of Triple Offset Butterfly Valve

Provides Long Life

A triple offset Butterfly Valve has a third offset which provides a unique conical sealing design. Metal sealing parts are never in contact until the seals are fully closed due to this unique design. Because of this, consistent sealing extends the valve life.

Zero Leakage Performance

The Triple Offset design mostly comes with a metal to metal seat arrangement. This sealing bubble tight shut-off. As a result, we get zero leakage performance. The bubble tight shut off is the most preferred where minimal leakage cannot be executed like pharma industries, FMCG, petrochemicals, paint, etc.

Adaptability to harsh media

The triple offset design of the valve features no plastics or materials typically impacted by corrosion. Due to this, the valve can control all kinds of harsh media. The corrosion resistance parts provide long life to the valve.

Low Friction

The angular design of sealing parts provides frictionless operation inside the valve. This increases the valve’s durability and permits a smaller torque actuator to be fitted.

There are no gaps between sealing components, resulting in no blockage, and it provides low maintenance with extended valve life.
